Cattle Panels and Gates Built to Last

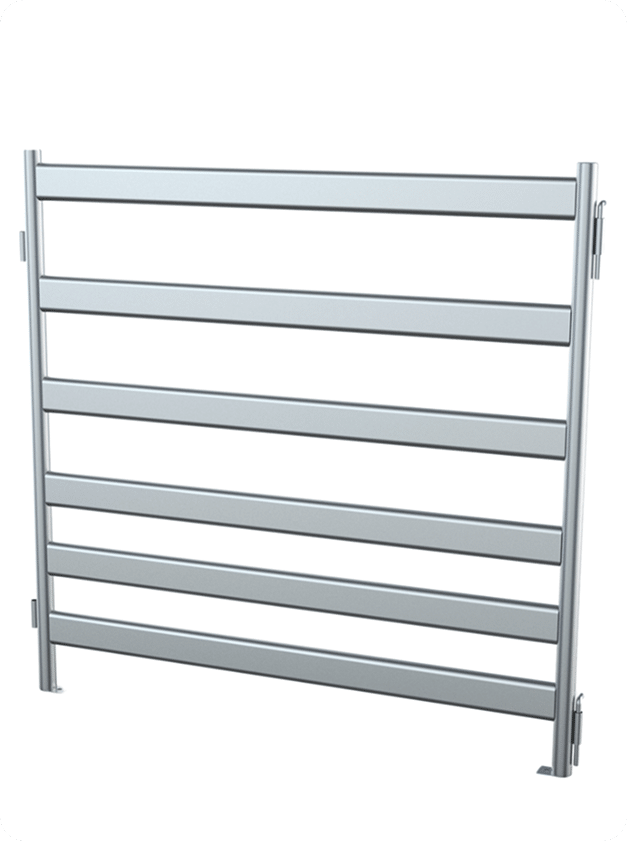

Super Heavy Duty Panels
- Built for High-Pressure Corrals and Alleys
Our super heavy duty panels are designed for high-use areas where strength and durability matter most. These cattle panels are commonly used in alleys, crowding areas, and primary working sections of a corral system. Also used for larger herds.
If you’re looking for the heaviest duty panel on the market, this is it!
SHD Panel Features
- Galvanized steel construction
- 14 gauge steel
- 6 foot high by 7 foot wide panels
- Fully welded caps and feet
- 2 3/8 inch round posts
- All pins included
- 4.5 inch oval rails

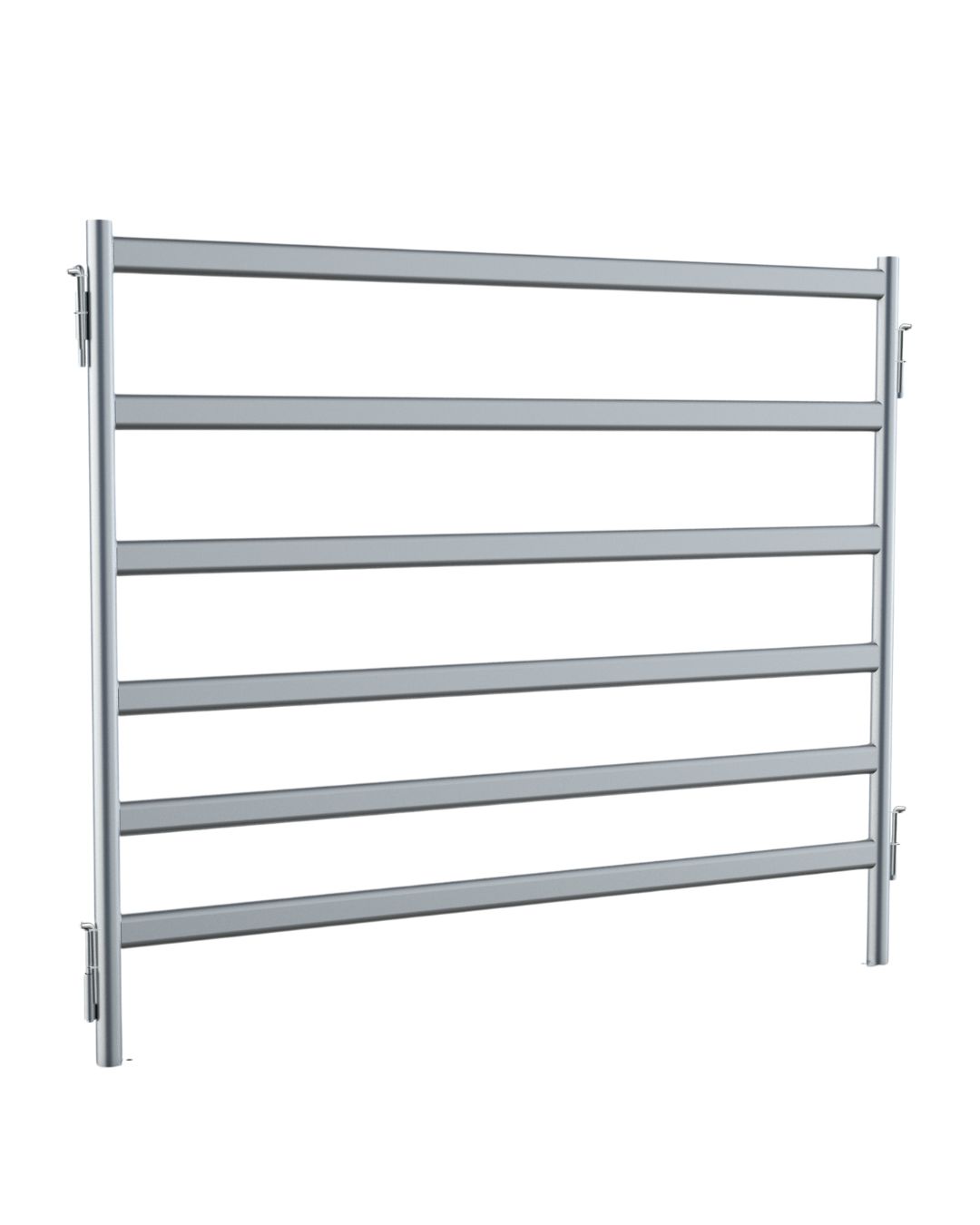

PREMIUM HEAVY DUTY Panels
- Premium Heavy Duty Panels & Gates
The PHD Range is built for ranchers who want strong, reliable equipment at a more affordable price point. It delivers the durability needed for large stock without overcomplicating the setup.
7 foot length panels allows for a stronger panel, easier handling, and precise corral design.
PHD Panel Features
- Galvanized steel construction
- 14 gauge steel
- 6 foot by 7 foot panels
- 2⅜" OD posts and frames
- Fully welded caps and feet
- 3 inch oval rail (anti-bruise)
- All pins included

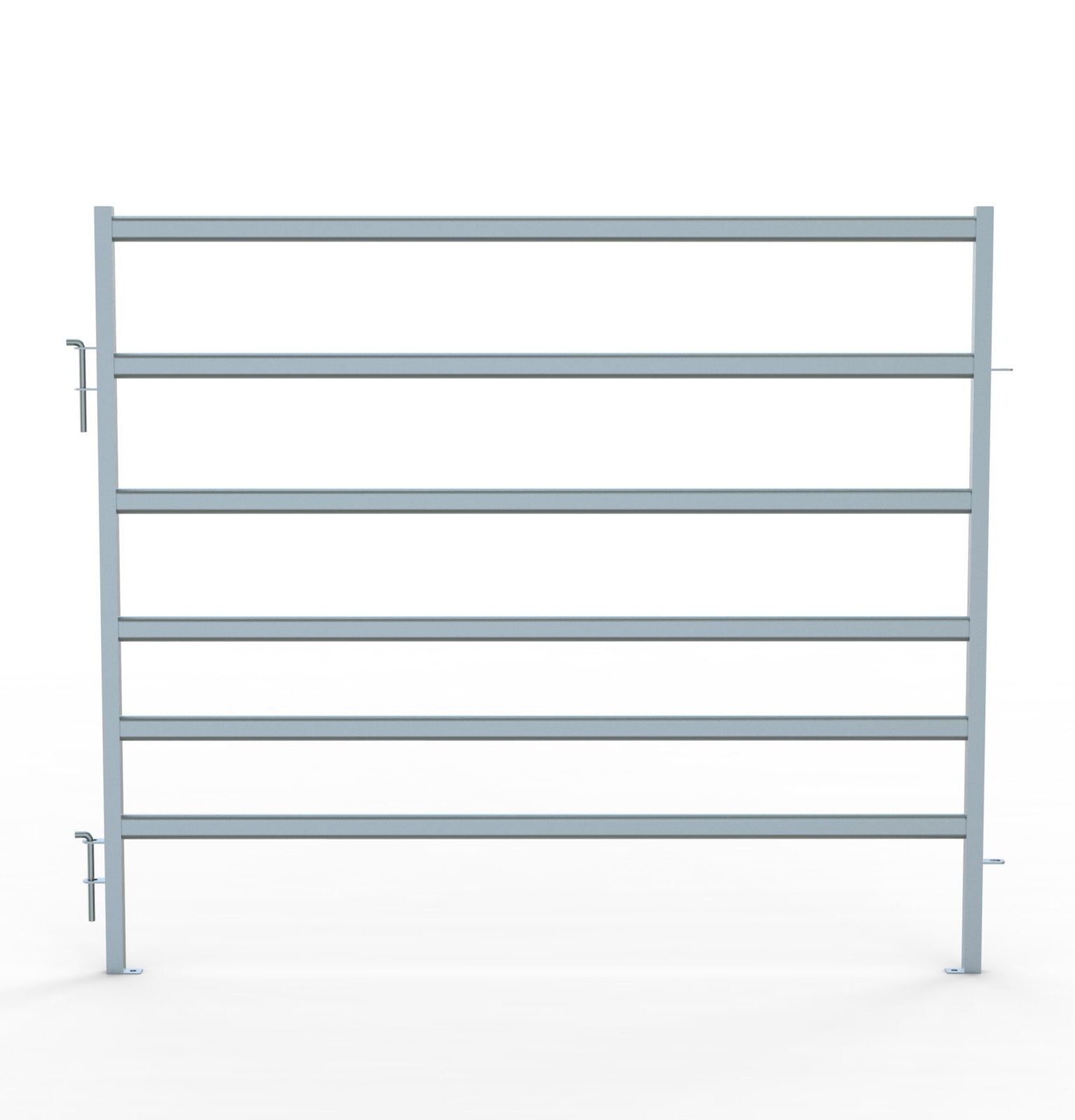

RANCHER Panels
- Versatile Corral Panels for Cattle Operations
Rancher Panels are designed for everyday cattle handling, they balance strength and accessibility. These panels are a strong fit for sorting pens, holding areas, and general corral use.
7 foot length panels allows for a stronger panel, easier handling, and precise corral design.
Rancher Panel Features
- Galvanized steel construction
- 16 gauge steel
- 6 foot high by 7 foot wide panels
- Fully welded caps and feet
- 1.5 inch square posts
- All pins included
- 2 3/8 inch oval rail (anti-bruise)
SHD Gates
- Wide, Strong Gates for Larger Corrals
Each gate is built to handle frequent use while maintaining strength and control.
AVAILABLE SHD GATE OPTIONS
- SHD Swing Gate for flexible corral access
- SHD Double Hinged Gate designed to open fully and lay flat
- SHD Double Gate at 14.5 feet wide for smooth cattle entry and exit

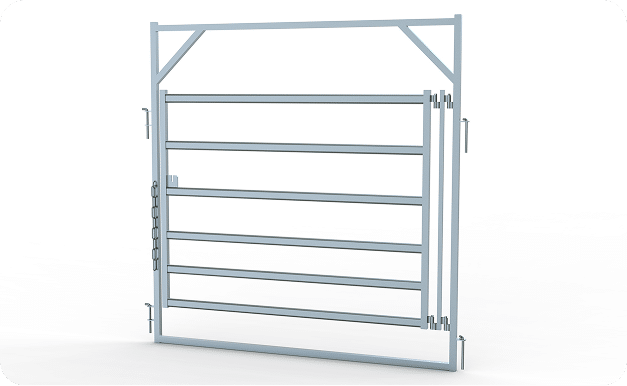

Double Hinged Gate
- 7 foot by 8 foot panels
- Chain latch
- Double hinge for 360° swing
- 14 gauge galvanized steel
- Slam latch optional add on available

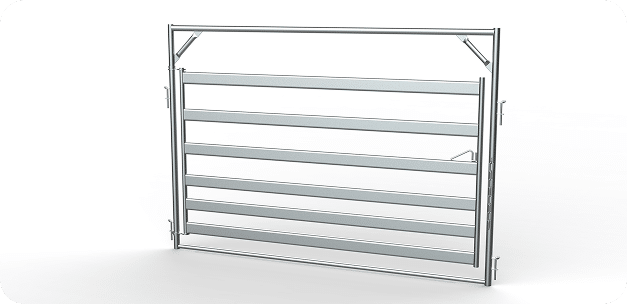

Single Gate
- 8 foot high by 10 foot wide panels
- chain latch
- 14 gauge galvanized steel

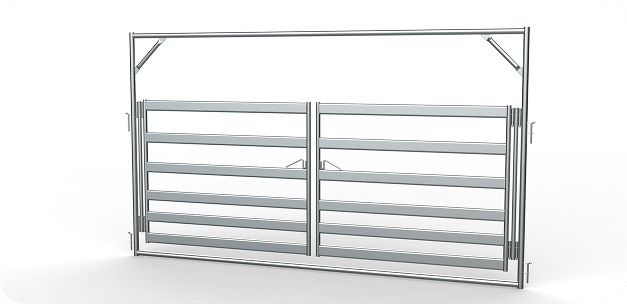

Double Gate
- 8 foot long by 14 foot high
- Chain lash
- Double hinged for 360° swing
PHD Gates
- Premium Heavy Duty Gates
The PHD Range is built for ranchers who want strong, reliable equipment at a more affordable price point. It delivers the durability needed for large stock without overcomplicating the setup.

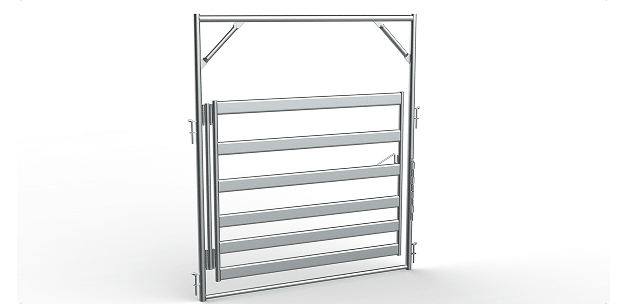

PHD Double Hinged Gate
- 7 ft long
- Double hinged for full 360° swing
- Chain latch

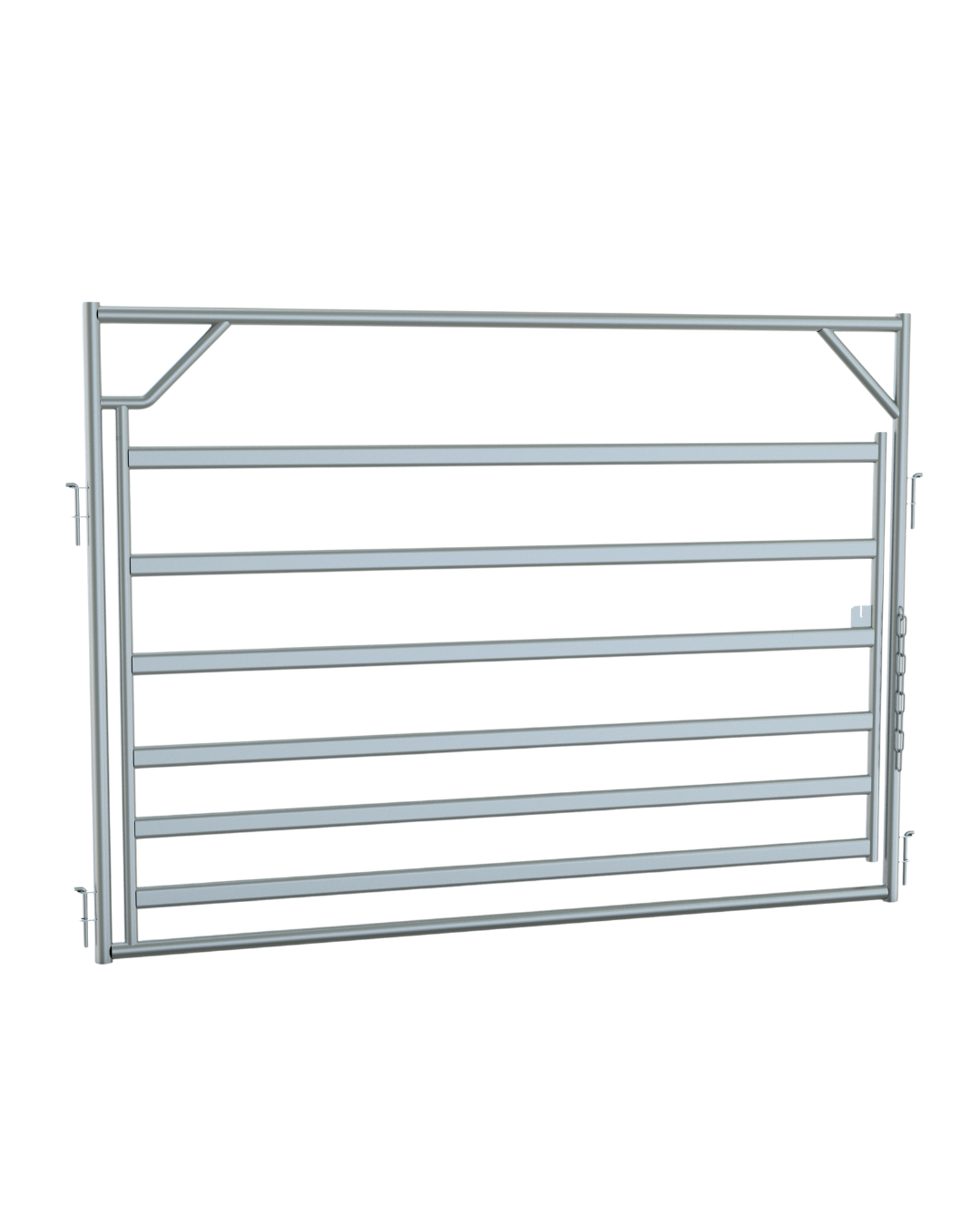

PHD 10 ft Single Gate
- 10 ft long
- Chain latch
PHD Slam Gate
- 7 ft long
- Two-directional slam feature

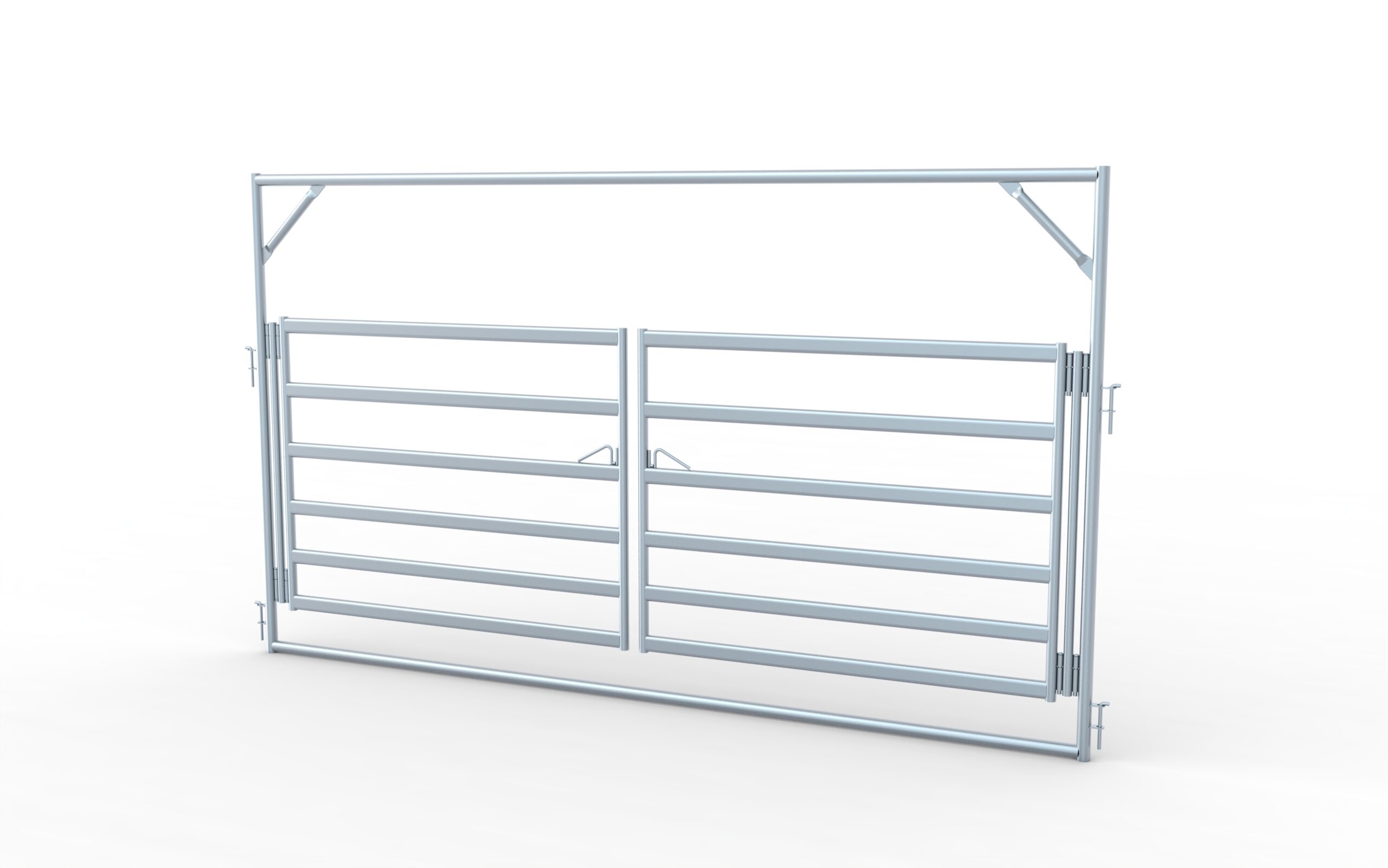

PHD Double Gate & Frame
- 14 ft long
- Double hinged for 360° swing
- Chain latch
Rancher Gates
- Horse and Cattle Safe Gate Options
These gates help prevent cattle from getting trapped behind open gates and reduce handling stress.
AVAILABLE RANCHER GATE OPTIONS
- 10 foot Rancher Swing Gate for entry or internal corral use
- Double Hinged Gate designed to swing 360 degrees and lay flat against panels
- Man Gate Panel Combo for easy walk-through access
Double Hinged Gate
- 7 ft long
- Chain latch
- Double hinge for 360° swing
- Galvanized steel

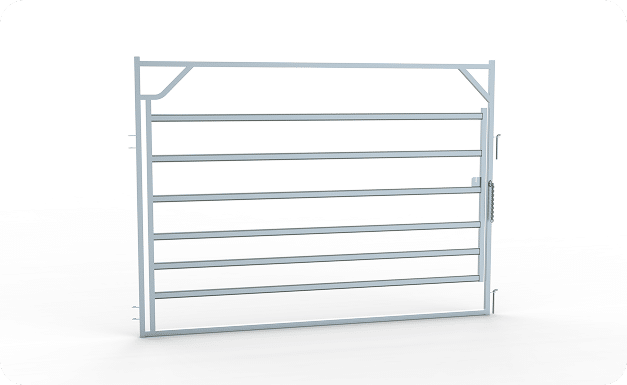

Single Gate
- 10 foot long
- Chain latch
- Galvanized steel
Additional Panel & Gate Accessories
We offer accessories to help fine-tune your corral setup and improve livestock handling results.
These additions increase flexibility and help create safer, more controlled movement through your system.
Sheeted Panels
Auto Lock Slide Gates
Race Bow designed to prevent panel spreading in alleys
Step Thru Gates with self-closing, one-direction swing
Man Gate Panel Combo for easy walk-throughs

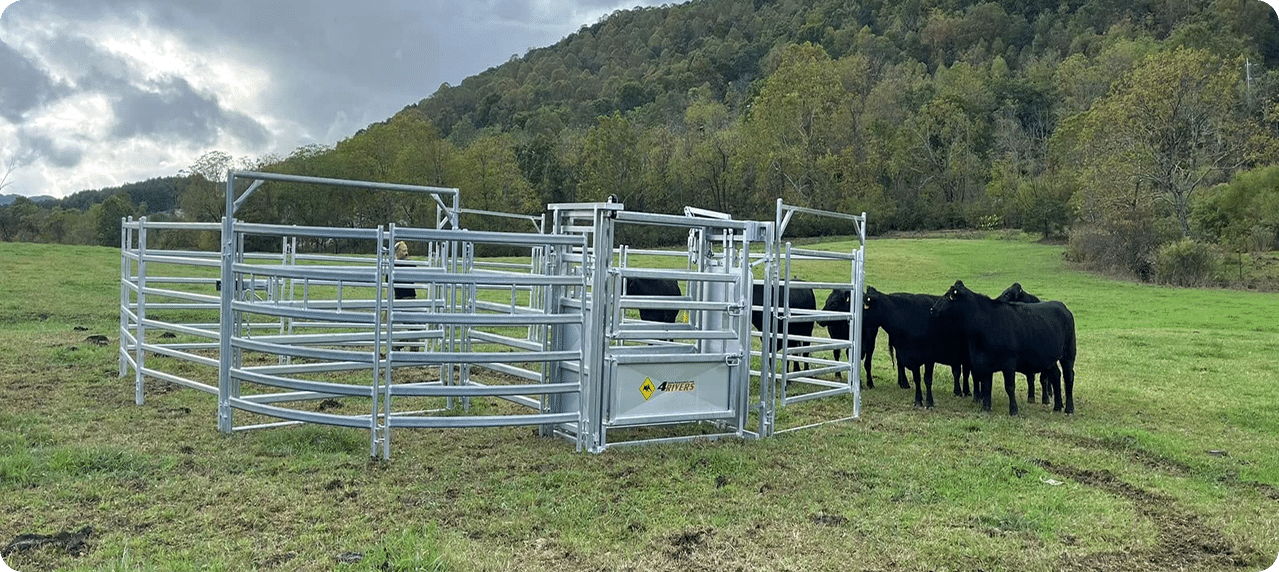

Built to Integrate With Chutes and Corrals
All 4 Rivers Ranch panels and gates are designed to integrate with squeeze chutes, tubs, corrals, and round pens. This modular approach allows ranchers to build a complete livestock handling system that can grow or change as needed.
Reach out today to build a corral system that fits your operation.
Heavy Duty Corral Panels With Easy Setup
4 Rivers Ranch builds cattle panels and gates that support safe, efficient livestock handling in real working environments. Each panel features welded caps and feet for added strength and stability.
Constructed from galvanized steel, no coating is required. Galvanized steel is one of the best defenses against rust, and treated welds add long-term protection. Rails are coped, not squashed, creating stronger connections.
Available in 16 to 14 gauge steel and multiple sizes to fit your setup.
Frequently Asked Questions About Cattle Panels and Gates
What gauge steel are your cattle panels?
SHD and PHD Range are 14 gauge steel and our rancher range is 16 gauge steel
How much do your panels weigh?
SHD: 110 lbs PHD: 100 lbs Rancher: 56 lbs
